THE EVOLUTIONX 1" - Standard Duty Non-Metallic Ball Valve Pump

THE EVOLUTIONX 1" - Standard Duty Non-Metallic Ball Valve Pump

Brand: Sandpiper

Category: Diaphragm Pumps (AODD Pump), Standard Duty Ball Valve Pump

Quantity: In Stock

non-metallic aodd pump

1 inch aodd pump

standard duty ball valve pump

Sandpiper S1F Non-Metallic 1" (25 mm) – Standard Duty Ball Valve AODD Pump

S15 Non-Metallic 1½" (40 mm) - Standard Duty Ball Valve AODD Pump

Description

Specifications

Stroke: 0.22 gallon (0.83 liter)

Weight: Polypropylene - 25 lbs (6 mm)
PVDF - 42 lbs

Porting Size: Suction Discharge - 1" ANSI/DIN Flange

Max Flow: 0 - 63 gpm(238 lpm)

Solids Handling: 0.25" (6 mm)

Max Operating Pressure: 125 psi (8.6 bar)

Suction Lift: Dry - 19" (5.8 m)
Wet - 31" (9.5 m)

Air Inlet: 3/4" NPT

Air Exhaust: 1" NPT

THE EVOLUTIONX 1" - Standard Duty Non-Metallic Ball Valve Pump

The SANDPIPER EVOLUTIONX 1" AODD pump is a cutting-edge innovation in AODD technology. This pump embodies over 55 years of expertise in fluid dynamics, delivering an advanced level of convenience, efficiency, and versatility.

Features		Applications
Effortless Maintenance: The EvolutionX design significantly reduces service time. Servicing the ADS now takes an average of just five minutes, compared to 45 minutes on other models. With 50% fewer fasteners and same-sized nuts and bolts, the EvolutionX simplifies maintenance by removing the need for washers. Easy Access Air System: Access air side components by removing only four bolts. The main air valve and pilot cave assembly are easily removable, thanks to the cartridge-style design Stable Workbench Placement: The “stand-off feet” enhance stability during disassembly, providing safer and more efficient servicing. Multiple Porting Options: Adjustable porting options featuring universal ANSI & DIN Connections to accommodate different purposes such as handling two fluids in a single diaphragm pump		Chemical processing: Suitable for safe handling of corrosive and sensitive chemicals Industrial fluid management: Ideal for processing and mixing fluids across industries Water Treatment: Effective in fluid transfer of wastewater and treatment applications.

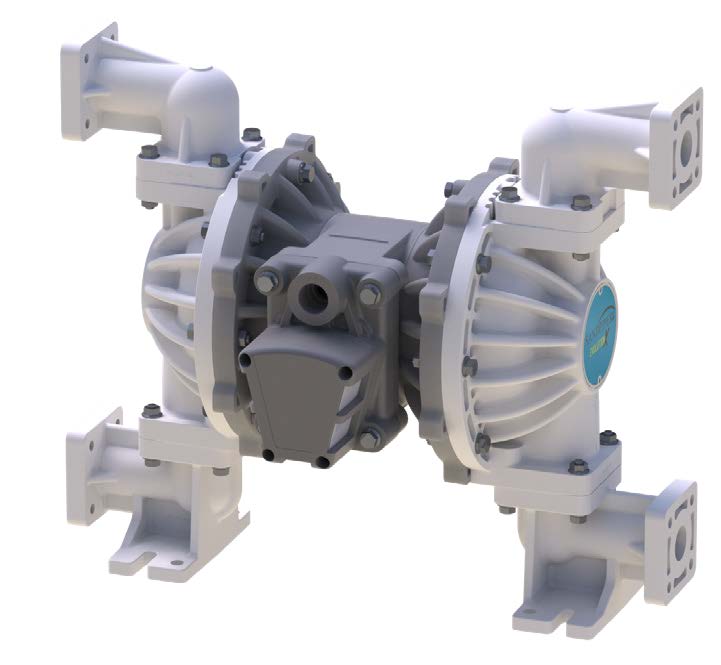

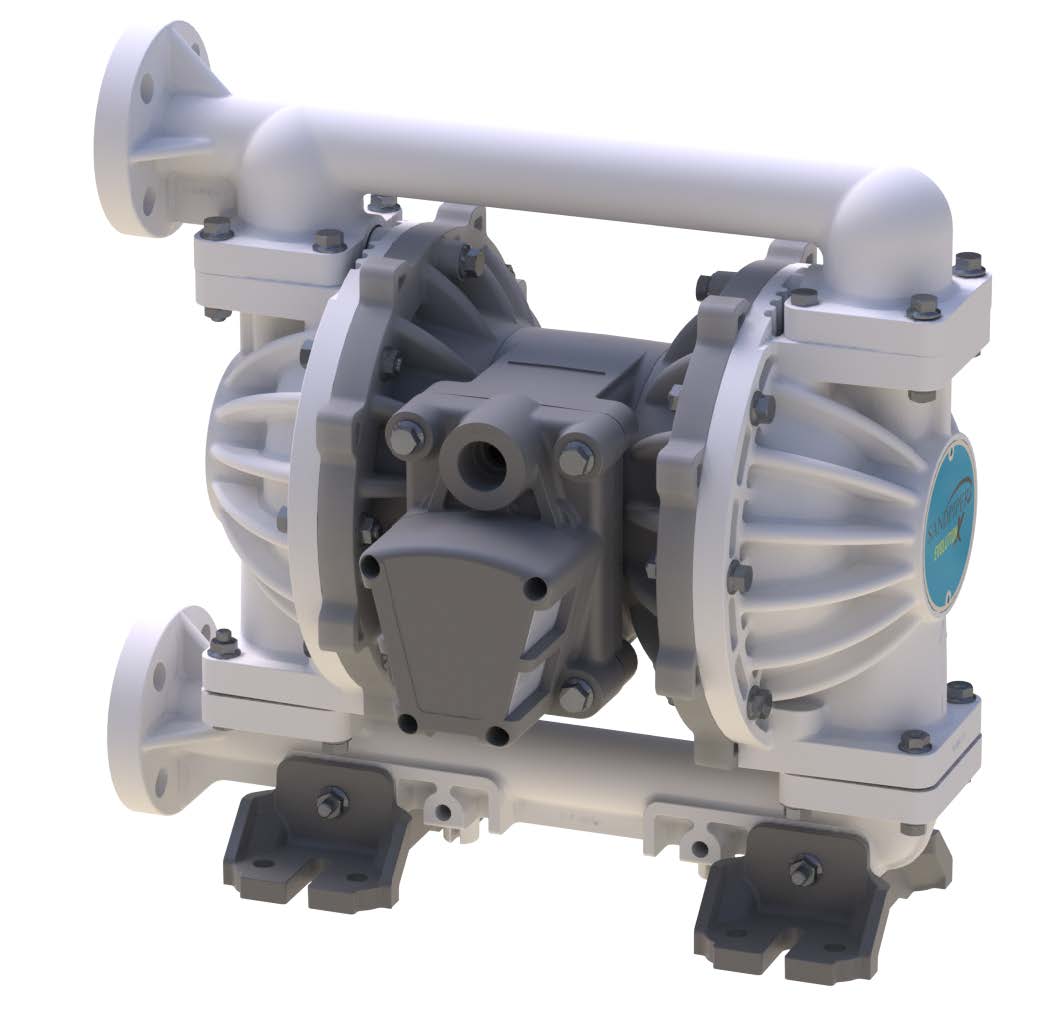

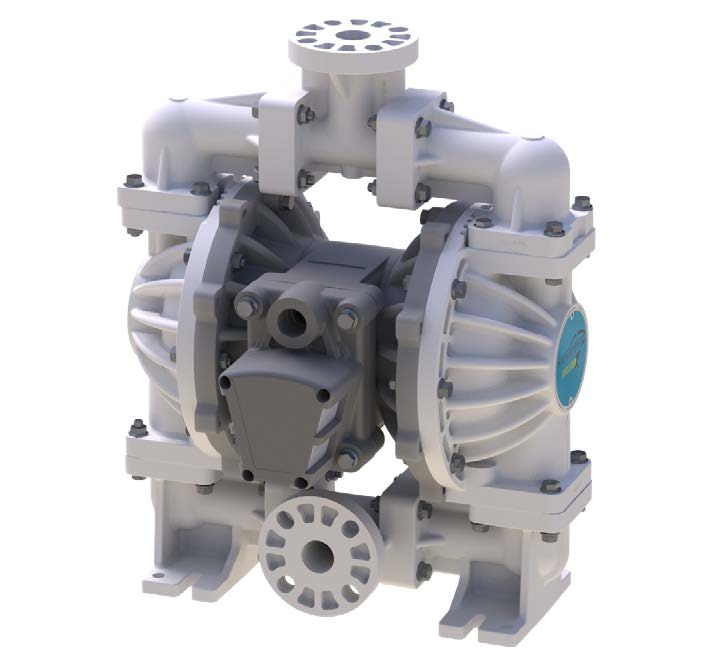

Centre Ported (Standard)		Dual Ported		End Ported

Why Choose SANDPIPER STANDARD DUTY BALL VALVE PUMP
Superior Efficiency: Achieve up to 20% more air efficiency over previous models, ensuring lower energy use without compromising performance.	Industry-leading Flow rate: This 1” AODD pump boasts the highest flow rate in its class, meeting even the most demanding application requirements.	Reduced operating Costs: With enhanced air efficiency, the EvolutionX helps reduce overall operating expenses.

Adjustable porting options featuring universal ANSI & DIN Connections to accommodate different purposes such as handling two fluids in a single diaphragm pump

Multiple Porting Options: Adjustable porting options featuring universal ANSI & DIN Connections to accommodate different purposes such as handling two fluids in a single diaphragm pump
